| Nom De Marque: | KHJ |
| Numéro De Modèle: | TS600D |
Description

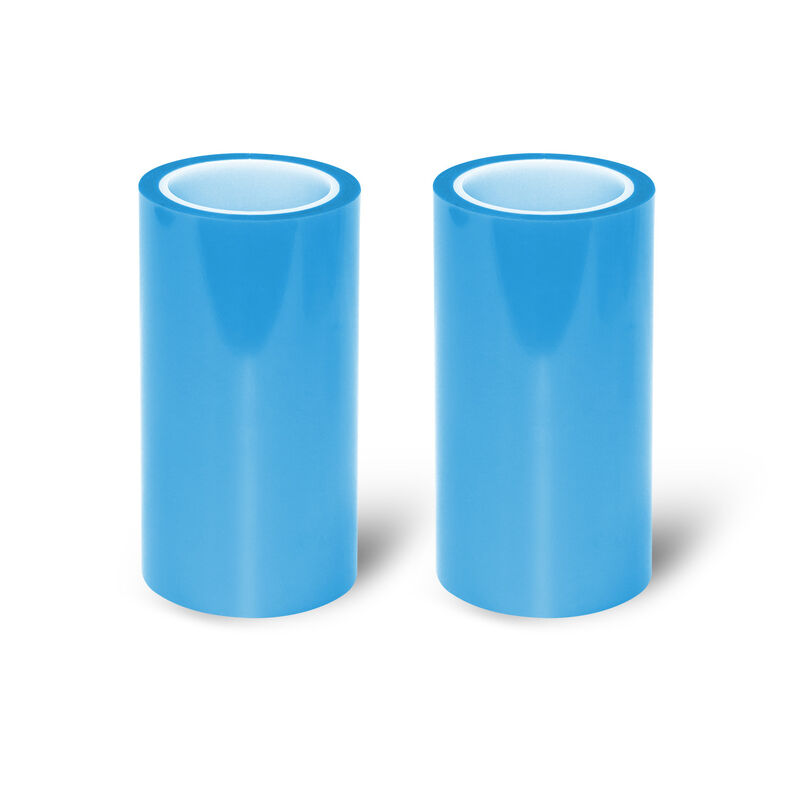

TS600D is a Blue thermal release tape with high initial viscosity. At (105-110℃), The stickiness of the adhesive surface disappears and automatic separation from the object to be adhered can be achieved.
Construction
| Item | Typical Value | Test Method | ||
| Imperial | Metric | |||
| Backing | 4.0mil | 0.1mm | / | |
| Total Thickness | 6.1mil | 0.155±0.005mm | / | |
Adhesion |
Before heating | 0.44-1.1lbs/in | 2-5 N/25mm | GBT 2792-2014 |
| After heating | 0 | 0 | ||
| Tensile Strength | ≥55bs/in | ≥3.5(KN/M) | GBT 30776-2014 | |
| Elongation | ≥120% | ≥120% | GBT 30776-2014 | |
Recommended debonding process: 110℃*4-15min(based on the heating method and the thermal conductivity and heat transfer uniformity of the attached object)
Storage
● Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.
● Shelf life: 12 months from the date of manufacture when stored in initial packing.
Precaution Reminder
● Surface should be clean, dry, free of dust, oil or other contaminants.
● Proper pressure required by roller, hand or press when applying.
● Avoid repeat sticking to prevent adhesion decrease.
Notes
Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
